Kverneland Saterra
Seeder | Pneumatic mounted seed drill
The Kverneland Saterra – compact, sturdy and efficient.
Compact cultivator-mounted seed drill - straightforward and efficient
The advantages of this Pneumatic mounted seed drill
Precise seed placement by CX-II coulter Cost-efficient and straightforward Reduced power requirement due to compact design No soil compaction in the tracksDescription

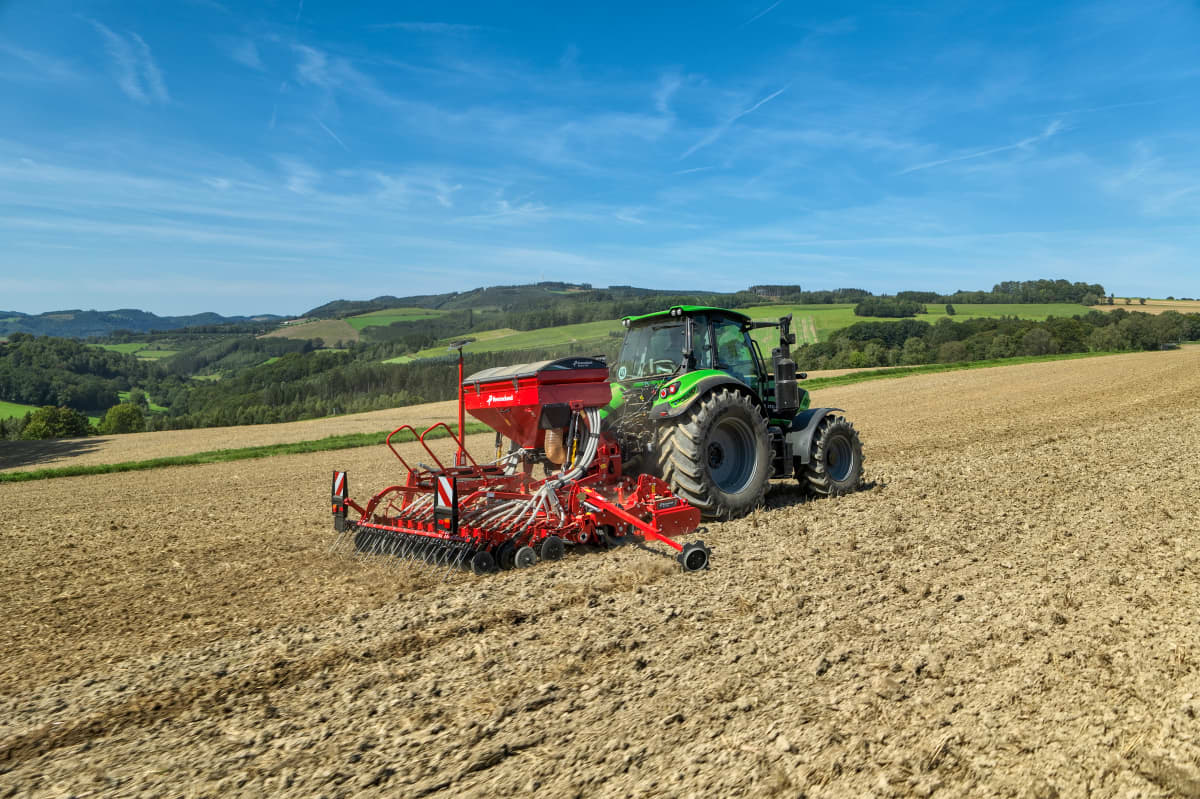

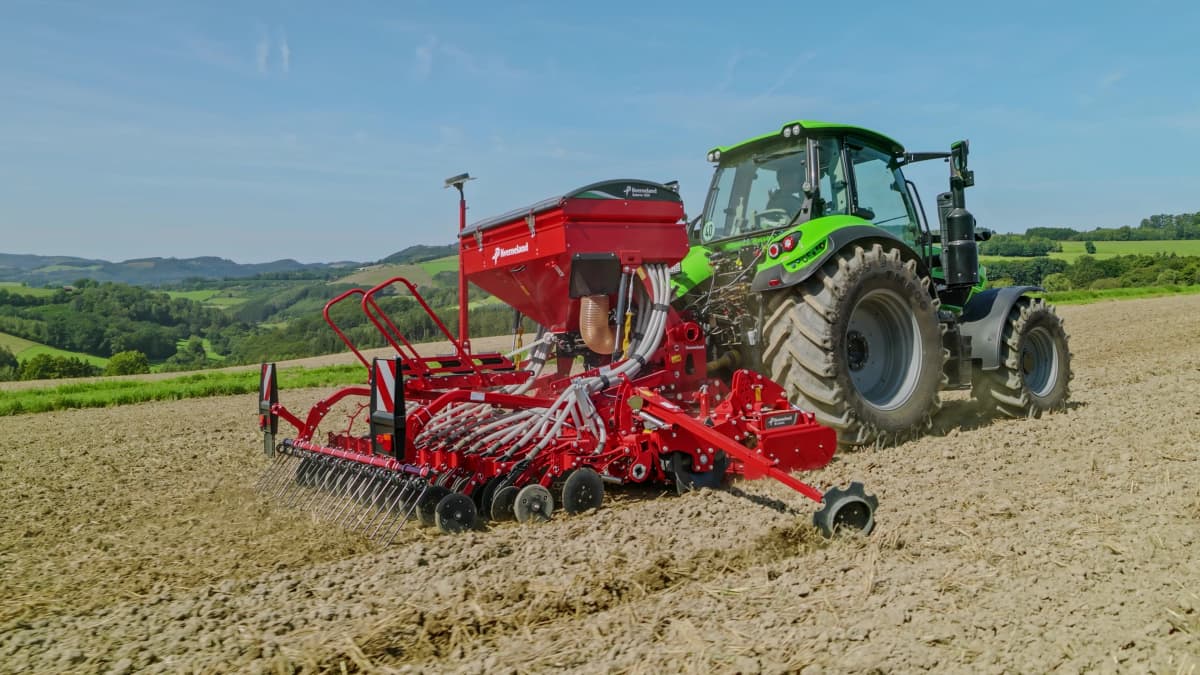

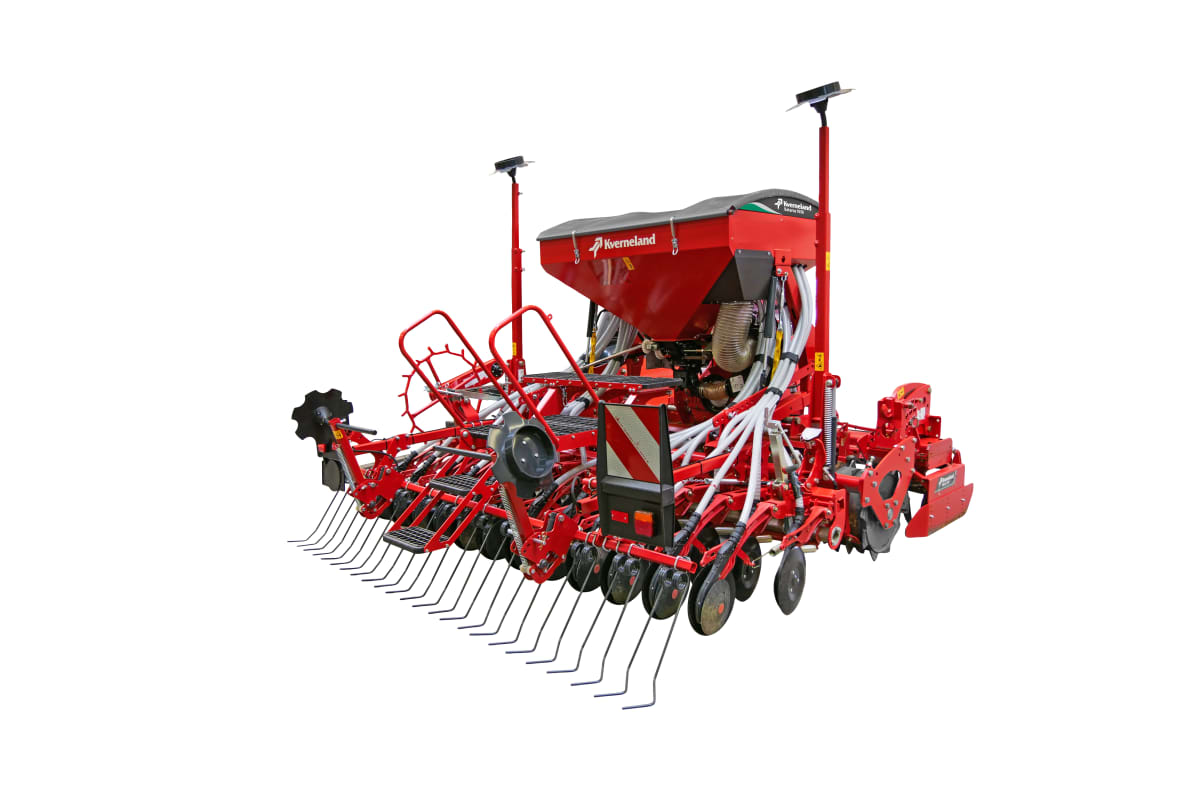

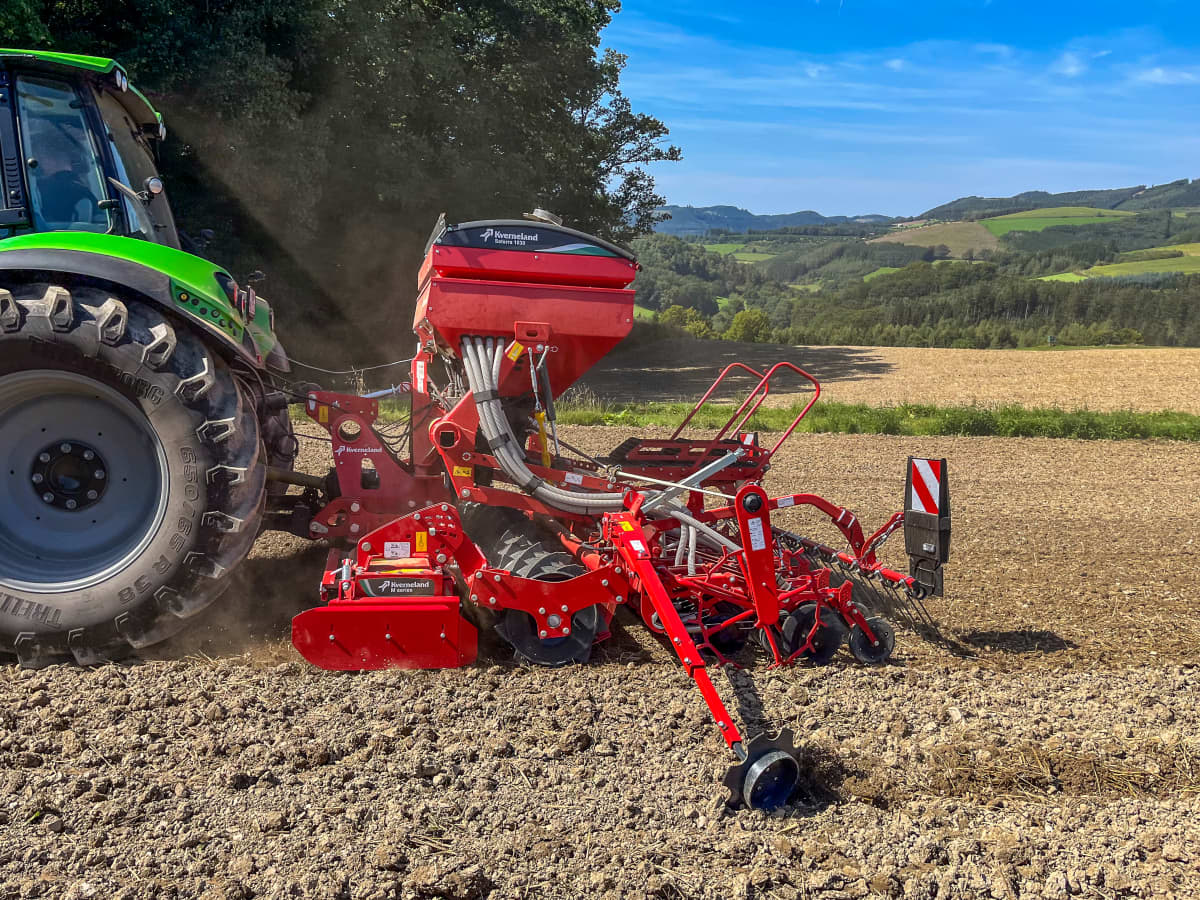

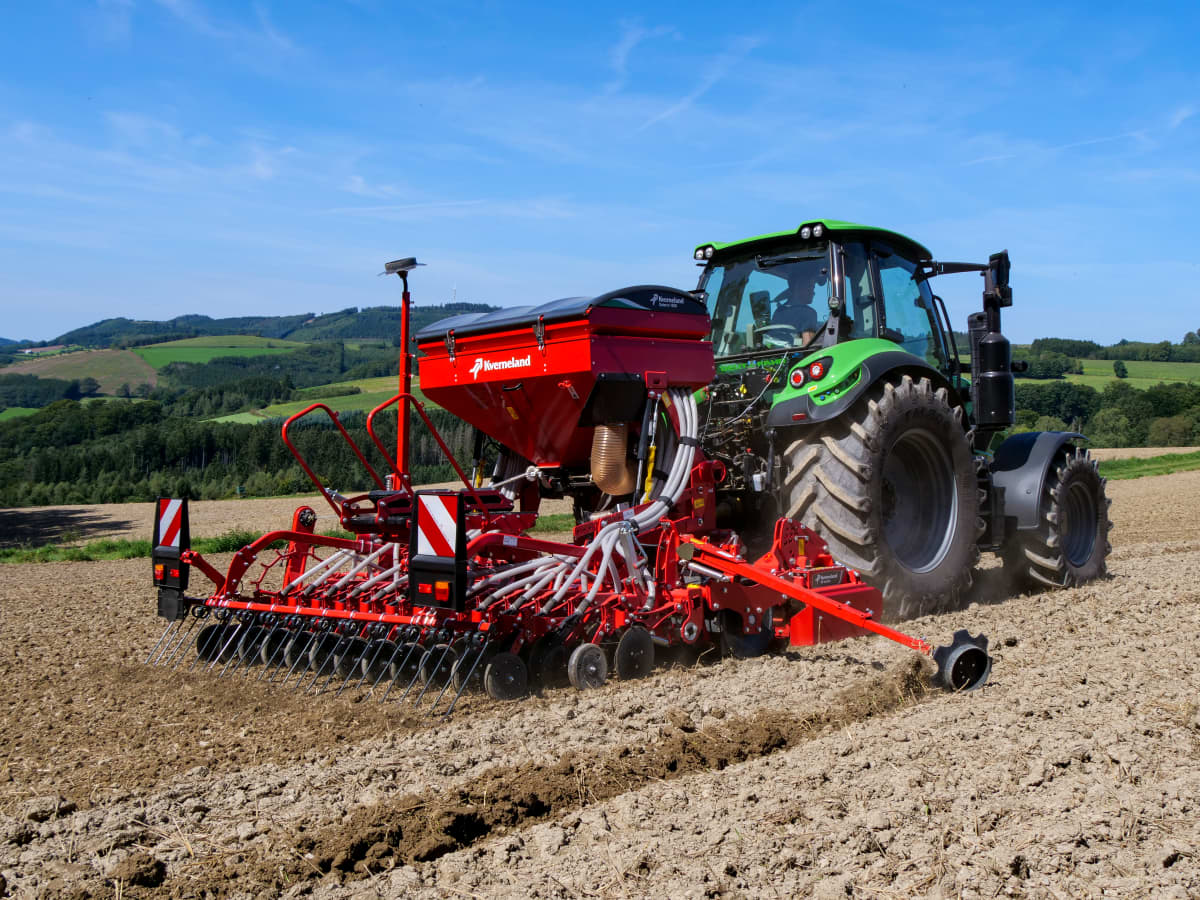

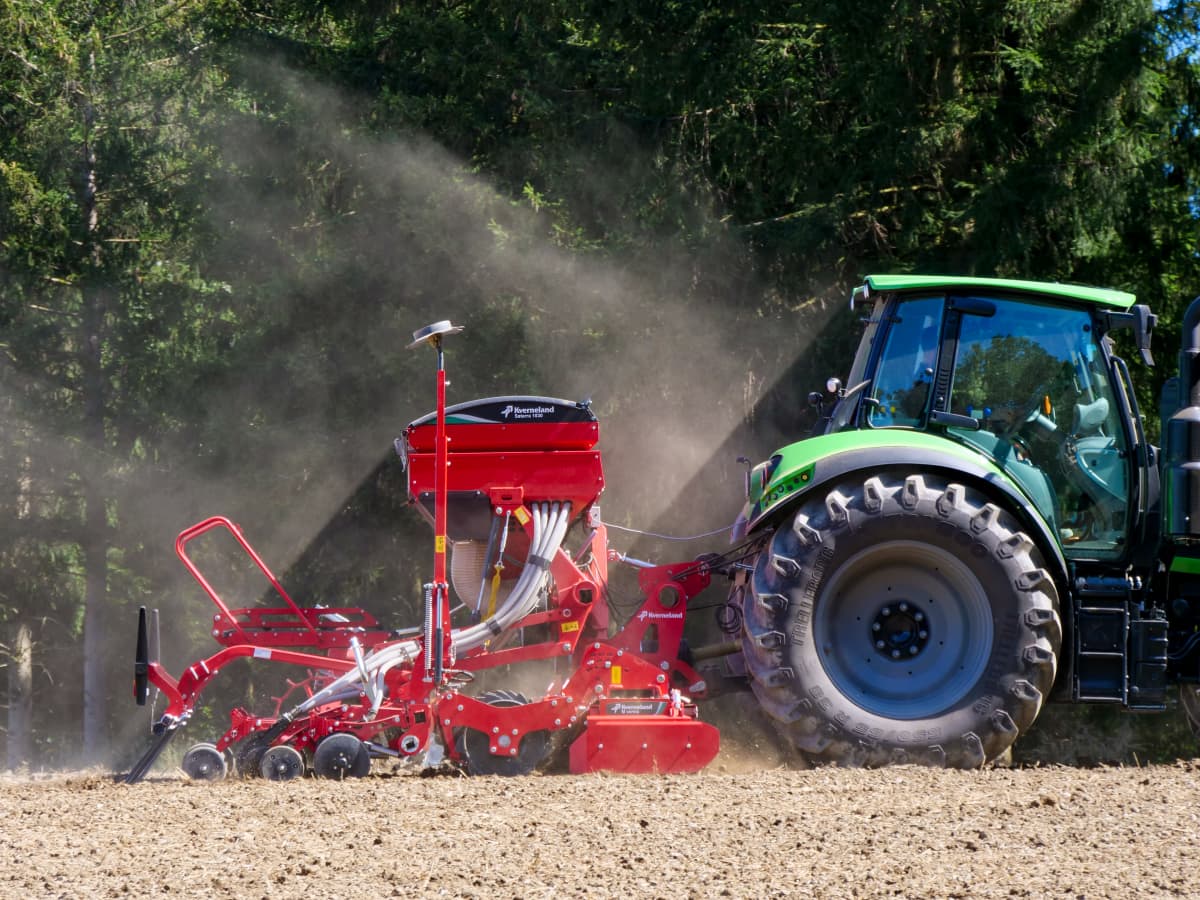

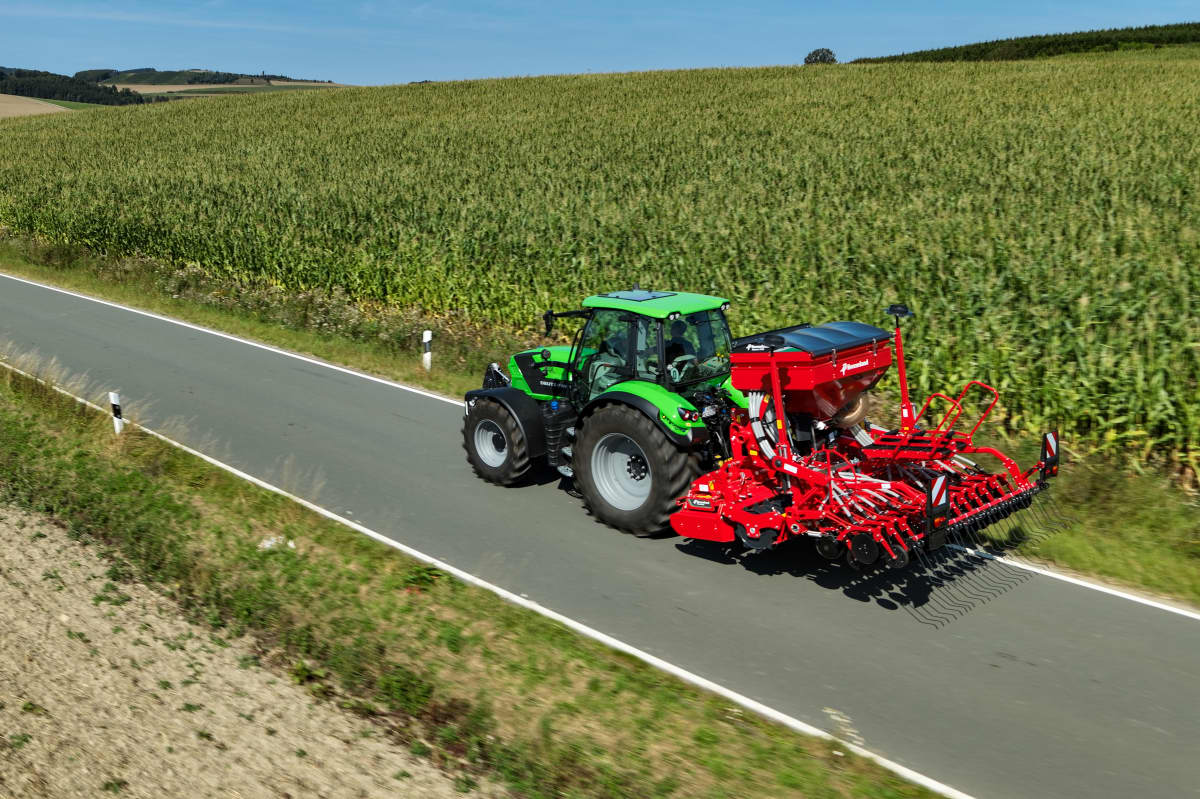

The Kverneland Saterra cultivator-mounted pneumatic seed drill is the perfect solution for medium-sized farms looking for an efficient and straightforward seed drill. The Kverneland Saterra is available in working widths of 3.0 and 4.0 meters and offers a hopper capacity of 750 or 1,000 litres.
Thanks to the universal coupling triangle, the Kverneland Saterra can be mounted on existing Kverneland power harrows and any other soil preparation tools. The compact design of the cultivator-mounted seed drill with a close centre of gravity reduces the lifting power requirement of the machine.
The tarpaulin cover of the hopper safely protects the seeds and distribution head against dust and humidity. It can be opened completely for filling by front loader, big bags or filling auger. The mechanical metering device is driven by a spiked landwheel allowing seed rates from 2 to 380kg/ha from fine to bigger seeds. An integrated brake at the landwheel prevents overdosing on headlands when the seed drill is lifted. The Kverneland Saterra is fitted with CX-II coulters for precise seed placement. Row distances can be set at 12.5cm or 25cm adapting to individual farming systems. . For using the power harrow solo a manual or hydraulic a coulter bar lifting option is available.
Features
- The central, totally enclosed cell wheel of the metering device accurately measures the required volume of seed and discharges it into the venturi cone where it is mixed with the air stream and then conveyed through the diffuser tube and the seed delivery hoses to the coulters.
- The distribution head is mounted in a protected position inside the seed hopper.
- The central metering device accurately metres any desired volume of seed from 2kg per hectare to 380kg per hectare
- For the sowing of fine seeds, e.g. rape or grass, the metering device can be infinitely adjusted to fine seed/micro-metering by means of a spindle, without any need for tools.
- The metering system is mechanically driven via the spiked landwheel running in the tilled soil.
- The metering device is centrally positioned and easily accessible under the hopper.
- The CX-II disc coulter from Kverneland not only guarantees smoother running but also exact seed placement.
- The flatter cutting angle of only 5.4° of the steel disc requires less pulling power to reach a constant seeding depth of up to 6cm.
- Due to the combination of the steel disc with a diameter of 325mm and the flexible plastic disc, there is no need for independent scrapers, saving the cost for expensive wearing parts. In addition the coulter is completely maintenance-free!
- Up to 50kg coulter pressure can be achieved by a pre-loaded spring. Safe operation is ensured when working with high working speeds and high quantities of plant residues on the soil surface.
- An inter-row coulter spacing of 445mm for maximum clearance and the following press wheel (standard equipment) ensure an optimum seed/soil contact in all conditions.
- The press wheels can be set in fixed, floating of lifted position in order to be able to adapt quickly to changing weather, soil or working conditions.
- The CX-II coulter is also available as light edition without press wheel which reduces the weight and length of the coulterbar. This will allow to operate the seeding combination also with lower lifting capacity of the tractor.
- The drill can be ordered with two different row spacings of 12.5cm or 25.0cm according to individual farming systems.
- The CX II coulters are clamped in staggered position over 2 rows by short and longer brackets.
- More clearance means different seed density and micro climate in the crop.
Choice of sowing distance
Sowing distance 12.5cm
- Best distribution for high seed rates
- Rows close quickly
- Reduced weed pressure
- Efficient use of nutrients, water and sun
Sowing distance 25cm
- Optimised micro climate reduces fungal infestation
- Less seeds needed per m² with new type of seeds (hybrid)
- Saving on water resources
- Reduced pulling force requested
- Better clearance in wet conditions
Technical specifications
Technical specifications
Download brochure| Maschine type | Kverneland Saterra 1030 | Kverneland Saterra 1040 | |
|---|---|---|---|
| Frame | cultivator-mounted | cultivator-mounted | |
| Working width (m) | 3.0 | 4.0 | |
| Transport width (m) | 3.0 | 4.0 | |
| Hopper capacity (l) | 750 | 750 | |
| Hopper extensions - option (l) | 250 | 250 | |
| Quick emptying chute | Standard | Standard | |
| Low level sensor | Standard | Standard | |
| Linkage to seedbed preparation tool | Saddle Triangle | Saddle Triangle | |
| Drive 1000 rpm | Option | Option | |
| Drive 540 rpm | Option | Option | |
| Hydraulic fan drive | Standard | Standard | |
| Mechanic metering device (no.) | Standard (1) | Standard (1) | |
| Micro metering | Standard | Standard | |
| FGS - Tramline system | Option | Option | |
| Signus - Tramline system | Option | Option | |
| Seed rate adjustment | Option | Option | |
| Seed quantity (min. - max.) | 2 - 380kg/ha | 2 - 380kg/ha | |
| Shut-off valves for tramlines | Option | Option | |
| Mechanic half-width shut-off | Option | Option | |
| Pre-emergence marker | Option | Option | |
| No. of coulters 12.5cm distance (no.) | Standard (24) | Standard (32) | |
| No. of coulters 25cm distance (no.) | Standard (12) | Standard (16) | |
| CX-II coulter incl. press wheel | Standard | Standard | |
| CX-II coulter special disc shape without press wheel | Option | Option | |
| CX-II coulter disc Ø (mm) | 325 | 325 | |
| Press wheel Ø (mm) | 250 x 42 | 250 x 42 | |
| Coulter pressure CX-II disc coulter (kg) | 5 - 50 | 5 - 50 | |
| Mechanic coulter pressure adjustment by crank | Standard | Standard | |
| S-tine following harrow (10mm) | Option | Option | |
| Calibration set | Standard | Standard | |
| Toolbox | Option | Option | |
| Hydr. folding track marker with notched disc | Option | Option | |
| Loading step / Platform | Option | Option | |
| Road light kit | Option | Option | |
| Oil charge hydr. fan 4200 U/min (l/min) | 30 | 30 | |
| Min. power requirement (HP/kW)* | 123/90 | 163/120 | |
| Weight (kg) with coulters | 1100 | 1270 |
* in combination with the seedbed preparation implement
Technical specifications
Technical specifications
Download brochureSaterra 1030 |
Saterra 1040 |
|
Frame |
cultivator-mounted |
cultivator-mounted |
Working width (m) |
3.0 |
4.0 |
Transport width (m) |
3.0 |
4.0 |
Hopper capacity (l) |
750 |
750 |
Hopper extensions - option (l) |
250 |
250 |
Mechanical metering device (no.) with micro metering |
Standard (1) |
Standard (1) |
No. of coulters at 12.5cm distance / 25cm distance |
24 / 12 |
32 / 16 |
Min. power requirement (HP/kW)* |
123/90 |
163/120 |
Weigth (kg) with coulters |
1100 |
1270 |
* in combination with the seedbed preparation implement
